Product Details
Miejsce pochodzenia: Baoji, Chiny
Nazwa handlowa: LIHUA
Orzecznictwo: ISO9001, TUV etc.
Numer modelu: LH-TH
Payment & Shipping Terms
Minimalne zamówienie: 1 sztuk
Cena: US dollar $15/kg--US dollar $35/kg
Szczegóły pakowania: Pudełko ze sklejki na eksport
Czas dostawy: 5-25 dni roboczych
Zasady płatności: Akredytywa, T/T, Western Union
Możliwość Supply: 5000 kg miesięcznie
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |

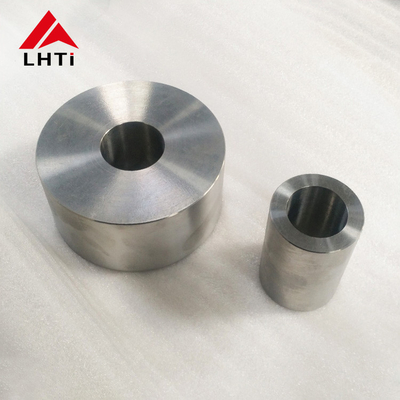

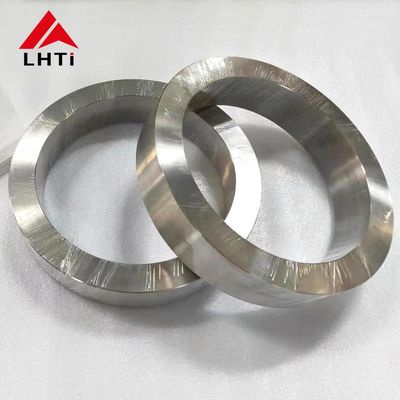

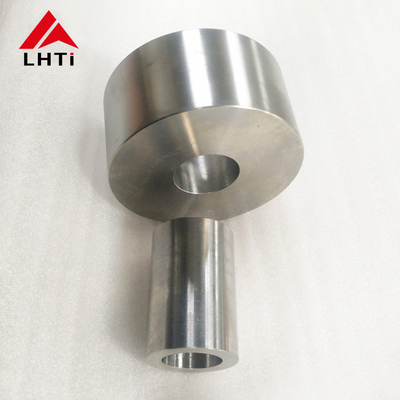

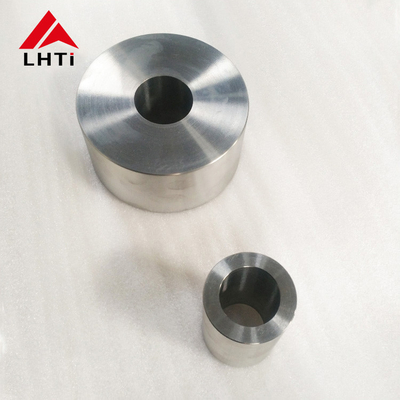

Titanium Ring Seamless Rolled Titanium Forgings
Seamless rolled rings can be produced in configurations ranging from flat, washer-like parts to tall, cylindrical shapes, with heights ranging from less than an inch to more than 9 feet. Wall thickness to height ratios of rings typically range from 1:16 up to 16:1, although greater proportions can be achieved with special processing. The simplest and most commonly used shape is a rectangular cross-section ring, but shaped tooling can be used to produce seamless rolled rings in complex, custom shapes with contours on the inside and/or outside diameters.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
