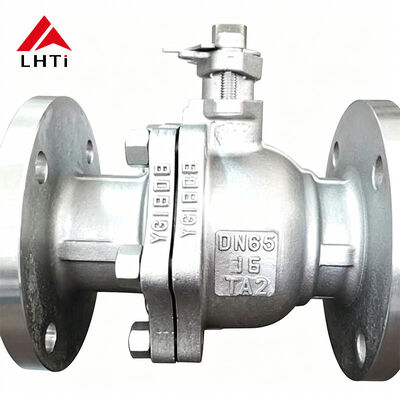

TA2 Titanium Alloy Ball Valve with Anti Corrosion Ultra-low Flow Resistance and Fire-proof Safety Design for Industrial Pipelines

Our titanium alloy ball valves are professionally engineered for pipeline systems conveying water, gas, petroleum products, natural gas and various acid-base corrosive fluids. They are widely adopted to realize pipeline medium cut-off, connection and flow regulation.

Compared with conventional valves, this series boasts outstanding comprehensive performance and practical advantages:

1. Ultra-low flow resistance, delivering smooth medium circulation with minimum pressure loss.
2. Equipped with thrust bearing structure, greatly lower operating torque for effortless and stable operation.
3. Adopt high-elasticity PTFE sealing seat, featuring zero leakage performance; sealing effect becomes better along with rising medium pressure.
4. Optimized stem structure avoids frequent packing abrasion, while self-lubricating sealing parts effectively reduce friction loss and extend overall service life.
5. Built-in anti-static mechanism safely conducts static electricity generated during valve switching, eliminating potential safety hazards.
6. Fire-proof safety design and blowout-proof valve stem structure ensure stable sealing performance even under extreme high-temperature working conditions.

• Pneumatic actuator adopts high-precision GT series rack and pinion type, available in double acting and spring return types. Large caliber valves are equipped with high-torque AW series actuators for stable output power.
• Optional supporting parts: solenoid valve, limit switch, valve positioner, air filter pressure reducing valve, manual override hand wheel etc.
• Standard air supply pressure: 0.4-0.7MPa
• Comply with ISO5211 international installation standard, accurate angle adjustment, easy installation and maintenance.

• Design & Manufacture: GB12237, API 6D, BS5351, DIN3357
• Flange Connection Standard: ANSI B16.5, GB, HG, JIS, DIN etc. international mainstream standards
• Structure Length Standard: GB12221, ANSI B16.10, JIS B2002
• Pressure Test Standard: API 598, JB/T9092

Widely used in chemical industry, petrochemical, pharmaceutical, new energy, environmental protection, metallurgy and other industries, especially suitable for harsh working environments with strong corrosion, high temperature and low temperature, it is the preferred fluid control equipment for anti-corrosion pipeline engineering.
